Specifications

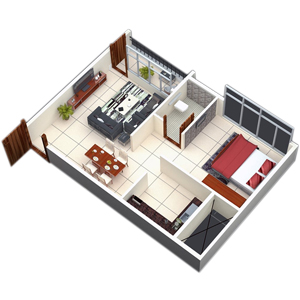

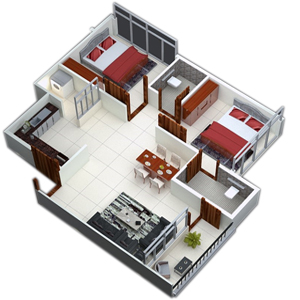

APARTMENTS FLOOR PLAN

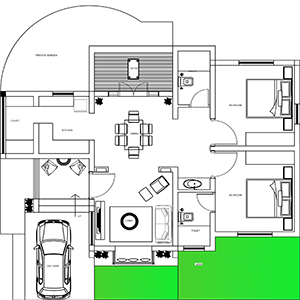

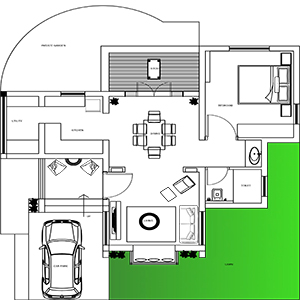

VILLAS FLOOR PLAN

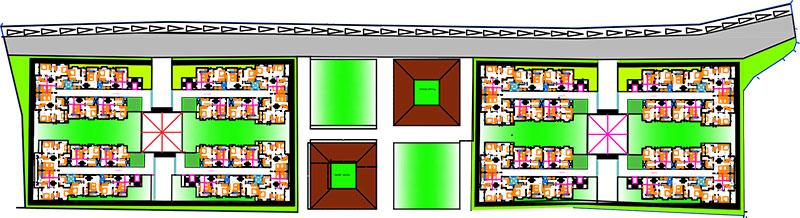

APARTMENT LAYOUT

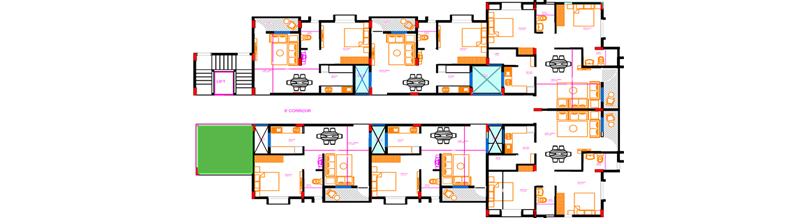

APARTMENT WING PLAN

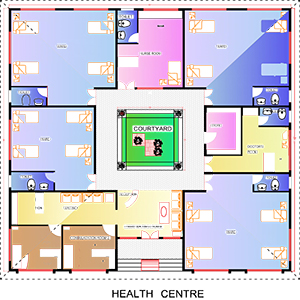

MEDICAL CENTER

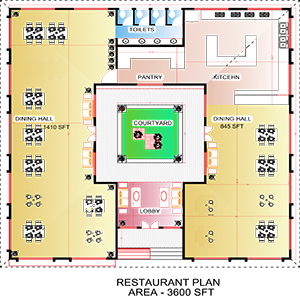

DINING AND KITCHEN
Single BHK Apartments 550 sft : Single BHK Villa 550sft.
Double BHK Apartments 750 sft : Double BHK Villa 750 sft.
RCC COLOUMN structure with 6″ thk external walls with cement solid block as 4″ thk internal walls with cement solid blocks.
Windows with aluminium frames with 4mm thk pinhead/plain glass.
Main door with sal wood frame and flush door shutters, with teak lamination on both sides.
Internal door with sal wood frame and flush shutter as per design
M.S grill 11mm m.s rods for the windows with enamel paint.
24″x 24″ Vitrified tiles of desired shade for the flooring (anti-skid tiles).
1’x1′ anti skid ceramic tiles for the flooring and 8″x12″ glazed tiles dado upto 7′ height in the toilets.
Kitchen – L shaped black granite counter 19mm thk + stainless steel sink with drain board Franke / Futura / Nirali Brand
Glazed tile dado upto 2′ height above kitchen granite counter.
External paint – Asian Ace External emulsion paint, Internally Asian Royale emulsion for walls and oil bond distemper for ceilings and Enamel pant for doors and windows
Electrical wiring with ANCHOR brand and ANCHOR ROMA DIKO modular switches.
Plumbing items as follows-
Water pipes 1″ thk Aashirvad/Astral CPVC pipes for external and 3/4″tank pipes for concealed works ( ISI Mark – A class)
4″ dia sanitary Prince/Supreme/Finolex PVC pipes vertical and below ground level.
Hindware / parryware EWC’S wall mounted cascade model with ceramic flush tank and regular size wash basins ( 22″x18″) in toilets
JAQUAR FLOURENTINE OR PARRYWARE JADE C.P fittings such as wall mixer taps ,etc
Geyser point provision in every toilet.
Solar piping till the terrace point upto unit is included in total plumbing estimation. The solar panel (unit) is not included.
Weather proofing coarse 4″thk for entire roof.
Overhead water tank capacity 50,000 lit
Parapet wall on top upto 3’ht.
Grab bars in bath rooms,& stairs/common areas
Emergency bells in bathroom, bedroom, Hall & Kitchen
CCTV in community
Club house 12800 sft.
Medical center 3600 sft.
Kitchen & Dinning 3600 sft.
Parking area = 6904 sft
Road area = 17000 sft
Central courtyard in between 4 blocks 1600 x 4 +1600 x 4 =12800 sft
2 pathways connecting central courtyard = 1067 sft
Area of one block including staircase block and passage = 5233 sft
Staircase and passage area of one block = 1034 sft
Built up area of 6 units = 4200 sft
Built up area of 4 units including staircase and passage 20932 + 20932 = 41864 sft
Area of park = 7200 sft
Built up Area = 39%
Open Area = 61%
